Best price of Bare Hard drown Aluminum electrical cables hda conducto and 50mm HDA conductor
| Min. Order: | 1 Meter |
|---|
| Packaging: | Wooen drum or iron wooden drum |
|---|---|
| Transportation: | Ocean |
| Supply Ability: | 500000 Meter/Meters per Week |
| Port: | Qingdao or other port |
Product Description
Best price of Bare Hard drown Aluminum electrical cables hda conducto and 50mm HDA conductor
HDA conductor 50mm2: 7/3.1 mm, 6000m/drum,
HDA conductor 100 mm2: 7/4.39 mm, 3000m/drum,
SCA conductor 50mm2: 6+1 /3.35 mm, 5000m/drum,
Our company founded in 2008, with own factory, have more business experience.
Ⅰ Applications
The product is widely used in the overhead power distribution system of you country ,and it is one of the main products for forming electrified wire network.
Ⅱ Standards
We could produce the cable according to many standards:ASTM ,BS ,IEC,DIN,
JIS and so on,
We will do our best to meet your requirements. the conductor could with or without grease.
Ⅲ Type
1. AAC : All Aluminum Conductor
2. ACSR:Aluminum Conductor Steel Reinforced
3. AAAC:All Alloy Aluminum Conductor
4. AACSR: Aluminum Alloy Conductor Steel Reinforced
5. ACAR: Aluminum Conductor Alloy Reinforced
6. ACSR/AW:Aluminum Conductor Aluminum Clad Steel Reinforced
HDA aluminum conductor ( AAC )
| Code name | Nominal | Stranding | Wire Diameter | Overall Diameter | Breaking Load | Weight |
| mm2 | No. | mm | mm | kN | kg/km | |
| Midge | 22 | 7 | 2.06 | 6.18 | 3.99 | 64 |
| Ant | 50 | 7 | 3.1 | 9.3 | 8.28 | 145 |
| Fly | 60 | 7 | 3.4 | 10.2 | 9.9 | 175 |
| Wasp | 100 | 7 | 4.39 | 13.17 | 16 | 292 |
| Hornet | 150 | 19 | 3.25 | 16.25 | 25.7 | 434 |
| Chafer | 200 | 19 | 3.78 | 18.90 | 32.4 | 587 |

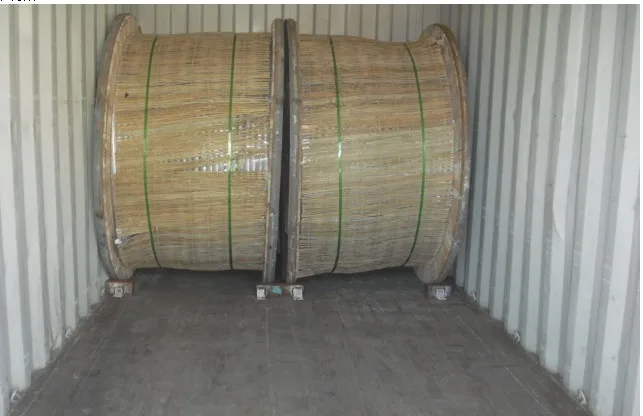

1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
1.100% all material must be tested.
2.All semi-finished products must be tested before entering the next process.
3.All finished products must be tested before packaging.
4.Commissioned by the authority of the third-party certification testing company for sampling.
SCG(Sanhe Cable Group)
Our trading company's name is Sanhe Cable, wholly-owned factory is Sitong Cable.
| ZHENGZHOU SITONG CABLE CO.,LTD a integrated in cable production,research & development,and domestic & international trade company. | |
| Established year | 2011 |
| Location | Zhengzhou City,Henan Province,China |
| Total asset | USD 50 million |
| Plant area | 28200 m2 |
| Number of staff | 310 |
| Number of Engineer | 15 |
| Laboratory Inspector | 24 |
| Production line | 20 |
| Testing Machine | 15 |
| Annual Producing Capacity | 600000km |
| Annual Output Value | USD 50 million |
| Main Product: | AAC,AAAC,ACSR, ABC Cable(Service drop Cable),Concentric Cable,XHHW, THW,THHN ,Power Cable,etc. |
Over 2000 Customers have come to us
OUR MAIN PRODUCTS: AAC, AAAC, ACSR, ABC CABLE, CONCENTRIC CABLE, GALVANIZED STEEL WIRE, POWER CABLE, Electric Wire.
Over 2000 Customers have come to us
Please send enquiry, Do not be hesitate to contact me.
Zhengzhou Sanhe cable.,Ltd.
| WhatsApp: | +0086 13683803874 |
Wechat:chen1368380038 |
| Tel: | +0086-371-69176007 | |
| Fax: | +0086-371-69176006 | |
| Wechat: | chen1368380038 | |
| Email: | shcable017(at)cnzzcable.com.cn
(at) mean @ | |
| Name: | Jack chen ( Chen Shuai Feng) |
Product Categories : AAC Conductor(All aluminum conductor) > AAC Conductor(All aluminum conductor)
