triplex service drop aluminum insulated conductor for overhead cable
| Unit Price: | 0.6 USD |
|---|---|
| Min. Order: | 10000 Meter |
Product Description
triplex service drop aluminum insulated conductor for Overhead Cable
1.Application
Service drop cable (ABC CABLE) is mainly used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting, it improves the safety and reliance of electrified wire netting.
2.Construction
Phase conductor: round stranded aluminum or AAAC, ACSR
Neutral conductor:round stranded aluminum or AAAC, ACSR
Lighting conductor: round stranded aluminum or AAAC, ACSR
Insulation :LDPE.HDPE. XLPE.PVC
3.Standard
IEC60502,NFC33209,BS7870,ANSI/ICEA S-76-474 AS/NZS 3560 etc.
''SANHE'' cable can also design and produce for special application requirment.
4.Specification Examples
| Code Name | AWG or KCMIL | Bare Neutral Messenger | Phase conductor | Weight | |||
| AAC | AAC | Insul. thickness (mm) | (kg/km) | ||||
| No. | Dia.(mm) | No. | Dia.(mm) | ||||
| patella | 2x6awg+6awg | 7 | 1.56 | 7 | 1.56 | 1.14 | 150 |
| Oyster | 2x4awg+4awg | 7 | 1.96 | 7 | 1.96 | 1.14 | 224 |
| Clam | 2x2awg+2awg | 7 | 2.47 | 7 | 2.47 | 1.14 | 338 |
| Murex | 2x1/0awg+1/0awg | 7 | 3.12 | 7 | 3.12 | 1.52 | 544 |
| Nassa | 2x2/0awg+2/0awg | 7 | 3.5 | 7 | 3.5 | 1.52 | 671 |
| melita | 2x3/0awg+3/0awg | 19 | 2.39 | 19 | 2.39 | 1.52 | 830 |
| portunus | 2x4/0awg+4/0awg | 19 | 3.25 | 19 | 3.25 | 1.52 | 1476 |

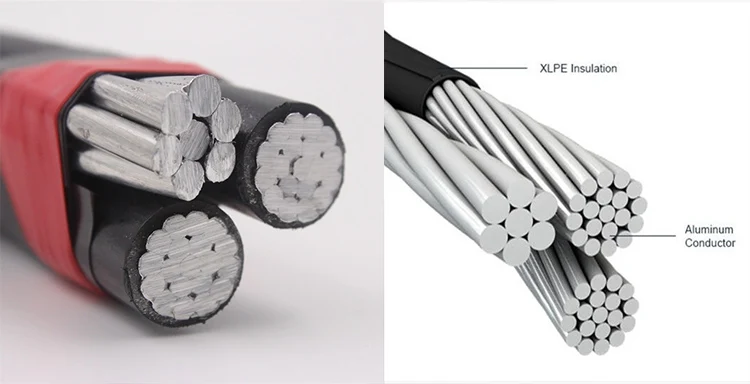

5.Pictures
Zhengzhou Sanhe Cable Co ltd ,founded in 2008, with excellent export experience.
The company's products are popular in more than 20 countries and regions
including the Middle East, Africa, South America and Southeast Asia. We have won
a lot of favor and approval of foreign cable importers. SANHE insists on the faith of
"honesty with good quality", the good quality means the most important feature
for us.
Our Team
More Than 20 Countries' Customers Come to Us
'' Click here for more information "
Factory Overview
Workshop
Test Lab.
More than 10 types package for customers
'' Click here for more information "
Q: Are you a factory or trading company?
A: We are a 10 years factory with more than 20 engineers.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in zhengzhou, henan province, china. You can fly to xinzheng airport directly or take train. high speed way here. warmly welcome to visit us!
Q: How can I get some samples?
A: We will prepare the similar samples to you according your inquiry.
Q: How does your factory do regarding quality control?
A: "Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end.
We Can Produce According to Customers' Requirments. Warmly Welcome to Contact Us !
'' Click here for more information "
