Laser 473 Nm
Payment Type: | T/T,Western Union |
---|---|
Incoterm: | FOB |
Min. Order: | 1 Piece/Pieces |
Delivery Time: | 20 Days |
Packaging: | Static free plastic bag and carton, Protective packing |
---|---|
Productivity: | 1000 |
Brand: | CNI |
Transportation: | Air |
Place of Origin: | China (Mainland) |
Supply Ability: | 1000 |
Certificate: | ISO9001 FDA CE Rohs |
HS Code: | 9013200099 |
Port: | Beijing,Shenzhen,Xianggang |
Basic Info
Model No.: MBL-III-473
Product Description
Optogenetics is a new discipline that combines genetic engineering with light, a new light-control method to select and open a particular class of cells in a living organism, and to manipulate the activity of individual nerve cells to find out how the brain has evolved gamma rays and provide new evidence for their role in regulating brain function. We use 100mw 473nm with good beam quality and TEM00 mode which is optimal choice for science experiment on optogenetics and neuroscience. It has high power stability from 1% to 5% optional. And the beam quality can reach the value of 1.2. Moreove, it can achieve TTL on/off modulation from 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz and analog modulation optional.
Features
■ Easy to install and maintain
■ CNI provided high reliability lasers
■All the necessary accessories can be provided
■ Customized solution can be provided upon request
Lasers Related
Experimental Device
Central wavelength (nm) | 473±1 | ||
Operating mode | CW | ||
Output power (mW) | >1, 5, 10, - , 100 | ||
Power stability (rms, over 4 hours) | <3%, <5%, <10% | ||
Transverse mode | TEM00 | ||
M2 factor | <1.2 | ||
Beam diameter at the aperture 1/e2(mm) | ~1.2 | ||
Beam divergence, full angle (mrad) | <1. 5 | ||
Polarization ratio | >100:1, Vertical±5 degree (Horizontal Optional) | ||
Noise of amplitude (rms, 1~20MHz) | ~30% | ||
Warm-up time (minutes) | <10 | ||
Beam height from base plate (mm) | 24. 8 | ||
Operating temperature (℃) | 10~35 | ||
Power supply (90-264VAC or 5VDC) | PSU-III-LED | PSU-III-FDA | PSU-III-OEM-97 |
| TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option | ||
Expected lifetime (hours) | 10000 | ||
Warranty period | 1 year |

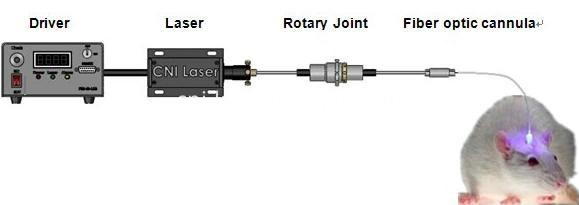

Fiber Patch Cables Fiber Optic Cannula & mating sleeve Rotary Joint

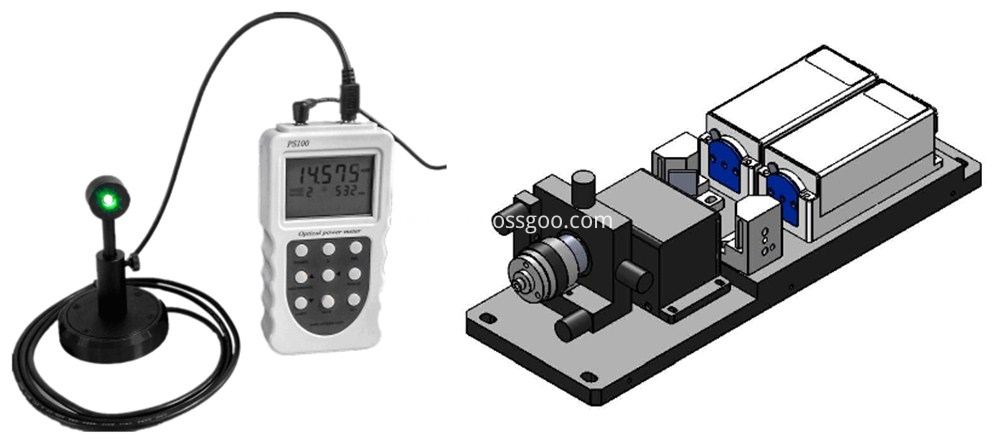

Laser Power Meter 2-in-1 laser and fiber combiner
Our Company
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and Diode Laser systems. Our products include Green Laser, Blue Laser, yellow laser, Red Laser, RGB laser, Infrared Laser, UV Laser , Single Longitudinal Mode Laser and Q-switched Laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
FAQ
1. What about the delivery?
TNT UPS FEDEX DHL
2. What about the warranty?
For 1 year
3.How to pay?
T/T Western Union
Product Categories : Laser Application > Optogenetics Laser
